If you’ve just set up a Berkey Water Filter System, one of the first things you may want to do is the Berkey red dye test.
This simple test helps you confirm that your Black Berkey Filters are actually working correctly.
The red dye test is widely used because it gives a quick, clear visual result – if the water comes out clear, the system is filtering correctly. If it doesn’t, something in the setup needs attention.
In this guide, you’ll learn exactly:
- How to do the Berkey red dye test (step-by-step)
- What clear water actually means
- Why pink water appears (and how to fix it)
- What the test does not tell you about water safety
If you haven’t set up your Berkey system yet, start with the guide below first.
Watch: Berkey Red Dye Test
Prefer to watch?
Hit play on the video below as I do the red dye test and fix the issue I had. 👇
Quick Answer (What This Test Shows)
The Berkey red dye test checks whether your Berkey Water Filter System is properly filtering water.
- Add red food colouring to the top chamber
- Let it filter through normally
- Clear water = filters are working correctly
- Pink water = something is wrong with setup or sealing
This test is a quick visual check only – not a full water quality test.
What Is the Berkey Red Dye Test?
The Berkey red dye test is a simple visual method used to check whether your filtration system is functioning correctly.
You add red food colouring (mixed with water) to the upper chamber and allow the system to filter the water naturally.
If everything is working properly, the dye should be completely removed by the time the water reaches the lower chamber.
How to Do the Berkey Red Dye Test (Step-by-Step)
1. Ensure Black Filters Are Properly Primed
Before performing the red dye test, it’s imperative to prime the black Berkey elements first. Poor priming is the #1 reason for failed tests.
| ⚠️ NOTE: If you’re using fluoride filters in your Berkey – DO NOT have them installed during the red dye test. This is to check the black filters only. |

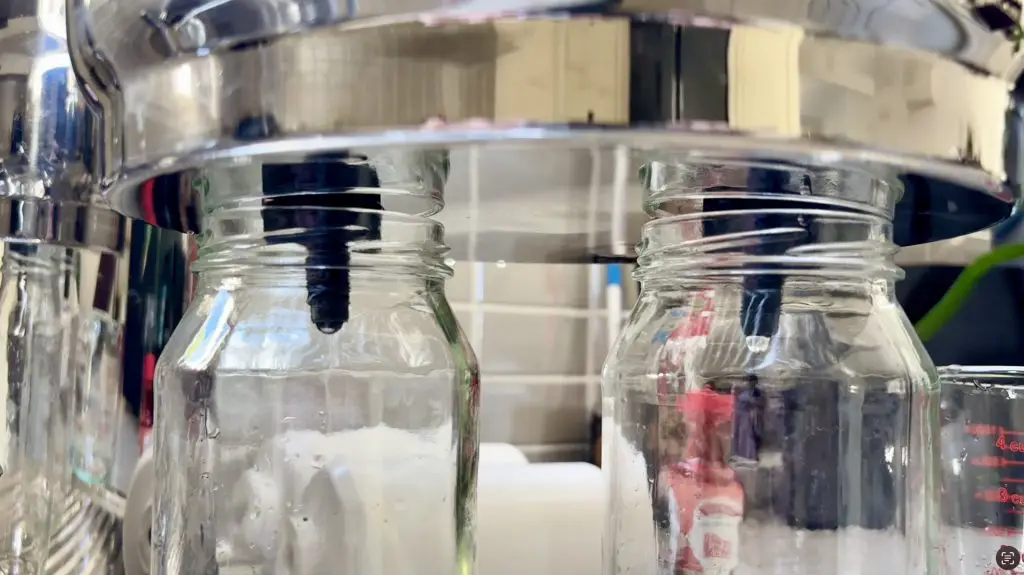

2. Set the Upper Chamber on Jars
Set your upper chamber on top of some glass jars with each filter thread positioned inside each of the jars.
This is the best way to visually see what’s dripping through or around the filters while it’s in progress.

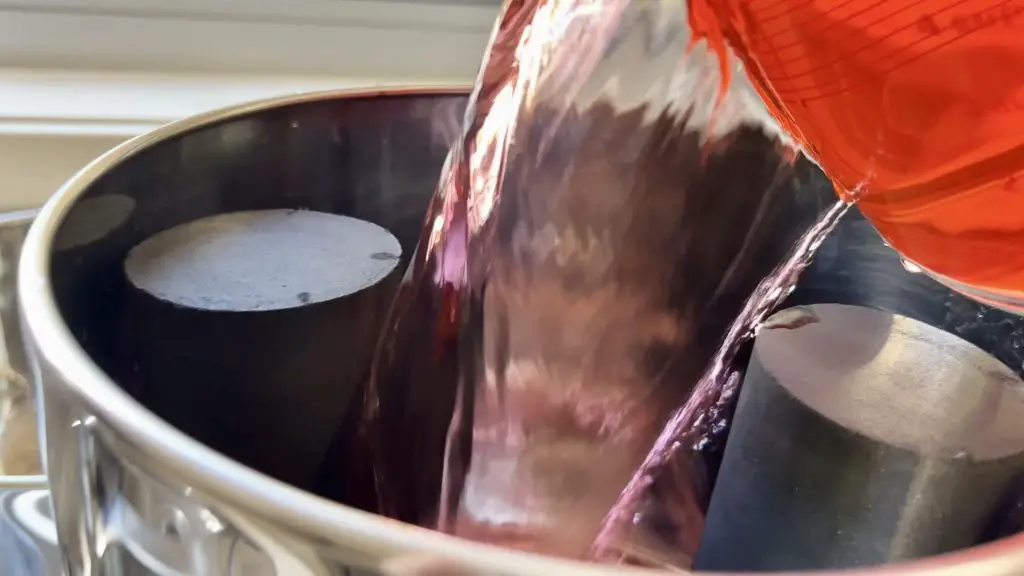

3. Add Red Food Dye Water
Add a few drops of red food colouring to about a litre or so of water and stir gently until the water is clearly red.
Pour this red water into the upper chamber of your Berkey.
4. Let the System Filter Naturally
Allow time for water to pass from the upper chamber, through the filters and into the lower chamber.
5. Check the Result
Have a look at the water collecting in each jar. You should be able to see it dripping through the centre of the thread from each filter and into the jar.
Here’s what you’re looking for:
- If filters are working correctly → you’ll see completely clear water with no pink or red tint.
- If there’s an issue → the water will have a red or pink tint.
Berkey Red Dye Test Results Explained
| Result | What You See | What It Means | Action Needed |
|---|---|---|---|
| ✅ Clear Water | No colour at all | Filters are working properly | None |
| ⚠️ Light Pink Tint | Slight discolouration | Likely setup or sealing issue | Re-check installation |
| ❌ Strong Pink Water | Clear red/pink colour | Water bypassing filters | Stop use + troubleshoot |
What Clear Water Actually Means
When the test works correctly, here’s what it actually confirms…
Black Berkey Filters are successfully removing:
✅ Food dyes
✅ Visible impurities
✅ Larger organic compounds
It also shows that:
- Water is passing through the filtration media
- System is sealed correctly
- Filtration is actively occurring
What the Red Dye Test Does NOT Prove
It’s important not to over-interpret the results of the Berkey red dye test.
The test does NOT confirm removal of:
- Bacteria or viruses
- Heavy metals
- Dissolved solids (TDS)
- All chemical contaminants
It is basically a function test, not a water safety certification.
Why Is My Berkey Water Pink?
If any colour appears in the filtered water, something is not set up correctly.
Common causes include:
- Filters not fully primed → reprime
- Filters not tightened properly → tighten a little more
- Missing or misaligned washers → check washers & retighten
- Gaps allowing unfiltered water through → tighten seal a little more
Before assuming that there’s something wrong with the filter, always re-check all of your installation steps.
| 🌿 Troubleshooting Guide: Berkey Filters Not Working → |
Do You Need to Do the Red Dye Test?
Once your Berkey is all set up and working properly, especially if it’s already passed a previous red dye test, you shouldn’t need to redo it.
Reasons for redoing the red dye test:
- Troubleshooting a suspected issue
- Just installed new filters
- The system has been moved around or fallen over – possible damage to filters
- Want visual confirmation everything is working
Frequently Asked Questions
The red dye test proves that water is flowing through the filters and that visible contaminants like dye are being removed.
Most often due to poor priming, incorrect installation, or air gaps around the filters.
No. Filtered water should always be completely clear.
Typically, less than 20 minutes. You don’t need to filter the entire tank of water – just enough to ensure it’s coming through clear.
Yes, but it should only be used occasionally for troubleshooting or reassurance.
Final Thoughts
The Berkey red dye test is a quick and simple way to confirm your system is working correctly.
If your water comes out clear, your Black Berkey Filters are functioning as intended.
Just remember: this is a visual performance check, not a complete water safety test.
